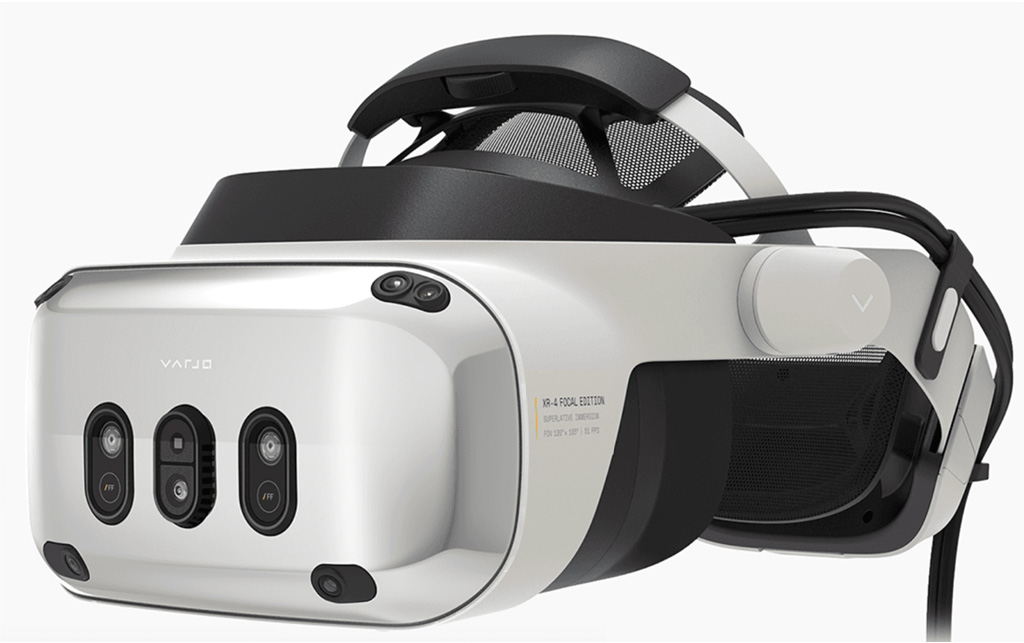

VARJO XR-4 Mixed Reality TAA Focal Edition

The Varjo XR-4 Focal Edition is specifically engineered for scenarios where precise interaction with real-world elements is critical. It features enhanced passthrough capabilities with up to 51 PPD resolution, thanks to its innovative gaze-driven autofocus system. This makes it perfect for applications that require detailed inspection of physical controls and instruments, ensuring that every element in your mixed reality environment is seen with exceptional clarity.


Request Quote

SKU varjo-x3-mr-2 Categories , Tags , , , , ,
Weight 3 lbs
Dimensions 9 × 9 × 9 in

Technical Specifications

Display & Resolution Full Frame Bionic Display
with human-eye resolution.
Focus area (27° x 27°) at 70 PPD uOLED,
1920 x 1920 px per eye
Peripheral area at over 30 PPD LCD,
2880 x 2720 px per eye
Colors: 99% sRGB, 93% DCI-P3
Field of View Horizontal 115° Diagonal: 134° at 12 mm eye relief
Refresh rate 90 Hz
Hand tracking Ultraleap Gemini (v5)
Comfort & Wearability 3-point precision ft headband
Replaceable, easy-to-clean polyurethane
face cushions
Automatic IPD 5-7mm
Weight 594 g + headband 386 g
Connectivity Two headset adapters in-box
Two USB-C cables (5 m) in-box
PC Connections: 2 x DisplayPort
and 2 x USB-A 3.0+
Positional tracking SteamVR™ 2.0 (recommended) or 1.0 tracking
Varjo inside-out tracking utilizing RGB video
pass-through cameras (beta)
Eye tracking 200 Hz with sub-degree accuracy; 1-dot
calibration for foveated rendering
Audio 3.5mm audio jack with microphone support
Mixed reality Ultra-low latency, dual 12-megapixel
video pass-through at 90 Hz
XR Depth LiDAR + RGB fusion,
40 cm–5 m operating range
