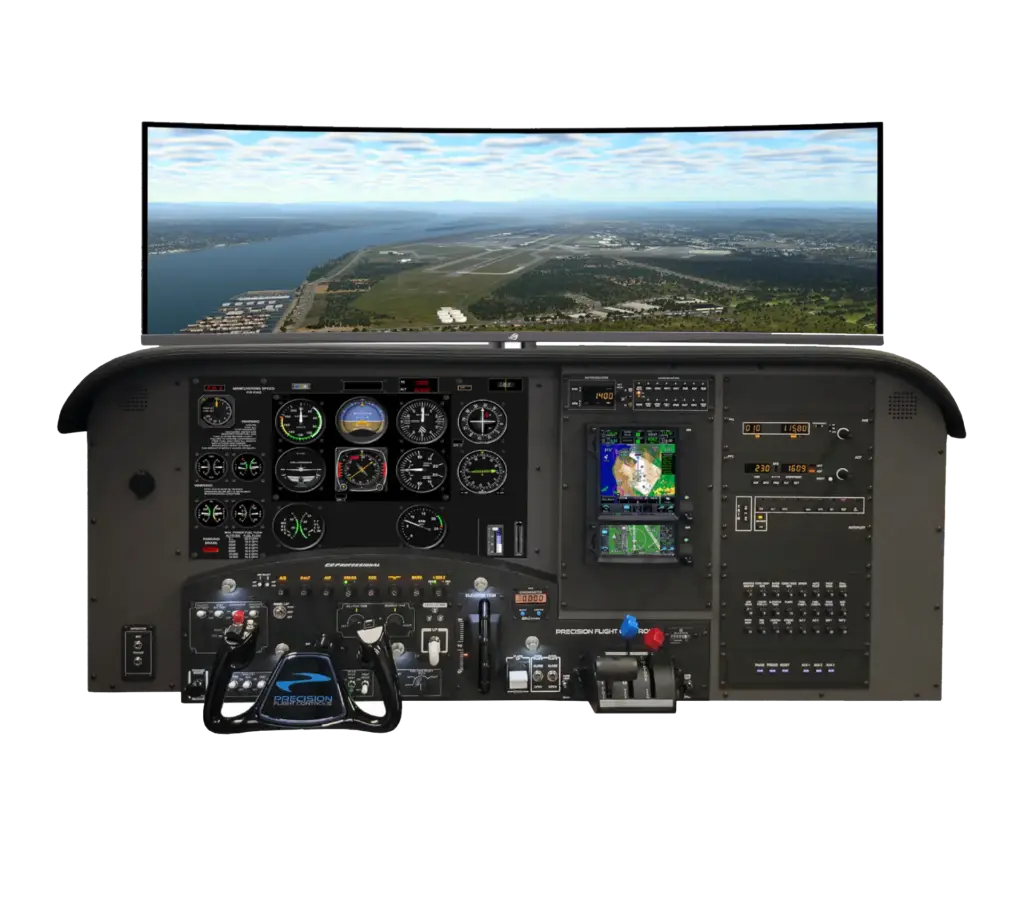

CR-12 ProPanel AATD

CR12 ProPanel
CR12 Curved
CR12 ProPanel
CR12 Curved

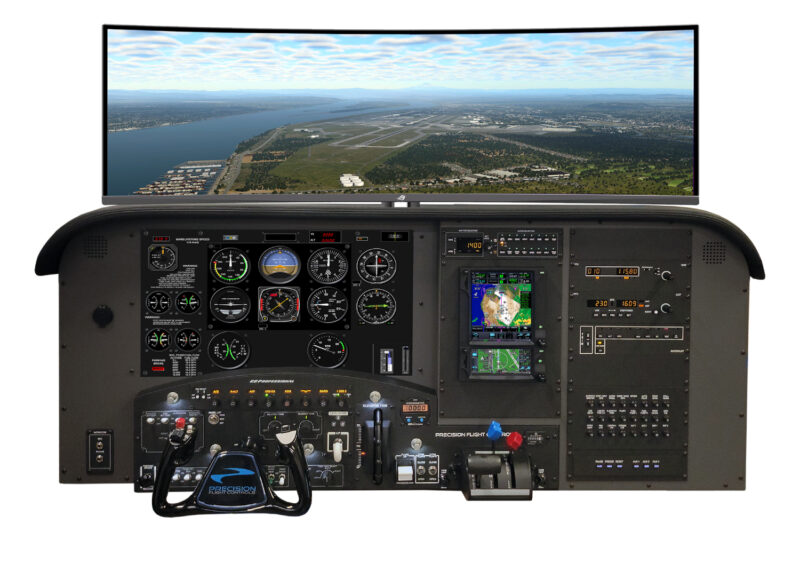

The CR-12 ProPanel system is the most cost effective full-featured desktop advanced aviation training device (AATD) on the market today. With the ability to reconfigure the system for over 40 different aircraft, and the loggable time approved by the FAA, the CR-12 ProPanel AATD system is simply the best value in desktop flight training on the market today.

Request Quote

Categories , , , Tags , , , , ,

Aircraft Fleet

Standard Aircraft (Included)

  • Cessna 152
  • Cessna 172P
  • Cessna 172R
  • Cessna 172S
  • Cessna 182
  • Cessna 182RG
  • Cessna 182T
  • Cessna T182T
  • Cessna 206H
  • Cessna T206H
  • Cessna 210
  • Cessna P210
  • Cessna 414A
  • Cessna 421C
  • Beechcraft Bonanza
  • Beechcraft Bonanza TC
  • Beechcraft Baron
  • Beechcraft Baron TC
  • Beechcraft Duchess
  • Beechcraft Travel Air
  • Piper Warrior II
  • Piper Archer III
  • Piper Arrow III
  • Piper Arrow III TC
  • Piper Arrow IV
  • Piper Arrow IV TC
  • Piper Malibu Mirage
  • Piper Seminole
  • Piper Seminole TC
  • Piper Seneca I
  • Piper Seneca V
  • Mooney 201
  • Mooney 231
  • Mooney 252
  • Diamond DA20

Turboprop Aircraft (Optional)

  • King Air C90
  • King Air B200
  • Cessna Caravan 208B
  • Pilatus PC12

Jet Aircraft (Optional)

  • Cessna Citation 501
  • Cessna Citation 550

Standard Features

  • All-Metal Construction
  • Choice of Beech or Mooney Yoke
  • C2 Professional Flight Console w/ 2-Axis Control Loading
  • Single Engine Throttle/Prop/Mixture Quadrant
  • Multi-Engine Throttle/Prop/Mixture Quadrant
  • Cirrus Rudder Pedals
  • Digital Avionics Enhanced
  • PFC 430W GPS Control Interface
  • Reality XP Professional GNS 430W/530W XP Software
  • X-Plane Professional Software
  • Instructor’s Operating Station (IOS)
  • Curved 4K Monitor (Visuals)
  • 4K Monitors (Instruments)
  • 4K Monitor (Instructor’s Operating Station)
  • Computer System w/ Solid State Drive and Backup SSD (Master)
  • Computer System w/ Solid State Drive and Backup SSD (Visuals)
  • 30+ Aircraft (Single and Multi-Engine) Fleet

Optional Features

  • Active Circuit Breaker Panel
  • CL Rudder Pedals Upgrade
  • PFC 430W Enhanced GPS Upgrade
  • PFC 530W Enhanced GPS Upgrade
  • FlightCrew Seat w/ Adjustable Base (No Tracks)
  • FlightCrew Seat w/ Adjustable Base (W/ Tracks)
  • Instructor’s Operating Station (IOS) Desk
  • Turboprop Add-on Kit
  • Jet Add-on Kit
  • Instrument Frames (5 to Choose From)
  • GPS EFB Connectivity Kit
  • 4 Way Intercom
  • Wireless Tablet Instructor’s Interface
  • PilotEdge© Live ATC Starter Kit
  • ForeFlight Connectivity Kit
  • Additional Throttle Quadrants (20 to Choose From)
  • Spare Parts Kit
  • Custom Flight Models

Specifications

  • System Dimensions: Width 51″ Length 17″ Height 21 1/4″ Weight 120 lbs.
  • Cirrus Rudder Pedals General Aviation: Width 16″ Length 19 1/4″ Height 12″ Weight 18 lbs.

Desk Requirements: 70″Width x 21″-29″Height x 32″ Depth ( must be able to support 210 lbs)
