MFD Caravan

Since its introduction operators in the world’s most demanding environments have leaned on the reliability and flexibility of the Cessna Caravan. Precision Flight Controls has brought the power of the Caravan to the Modular Flight Deck AATD. Modeling this type-specific flight simulator after the next-generation flight deck of the Cessna Caravan. Complete with G1000 NXi avionics, Multifunction Display (MFD), Pilot, and Copilot primary flight displays (PFD) the MFD Caravan brings fidelity to the next level.

Flight Controls: A dual linked dynamic control loading system includes all three axis (pitch, roll, yaw).

Standard software features include NXi version v 12, Synthetic Vision(SVT), Flight Charts, TCAS, TAWS, and Safetaxi.

Flight Model: The Cessna Caravan flight model utilizes Blade Element Theory for the best possible aerodynamic calculations while providing excellent flight performance characteristics. Aircraft performance data comes from a variety of sources including FAA, manufacturers data, flight manuals, POH, check airman, and customer data/input.

Available in Analog and G1000

Request Quote Leasing Calculator Download Brochure

Now Available

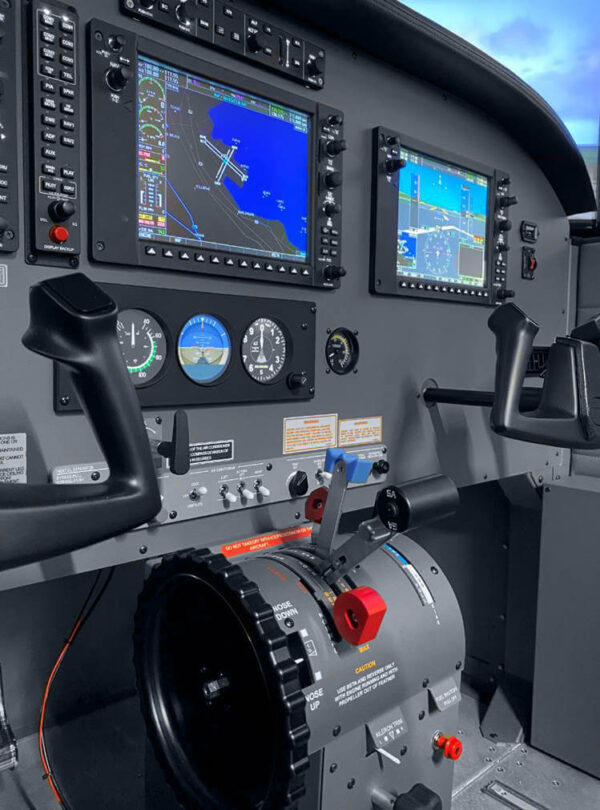

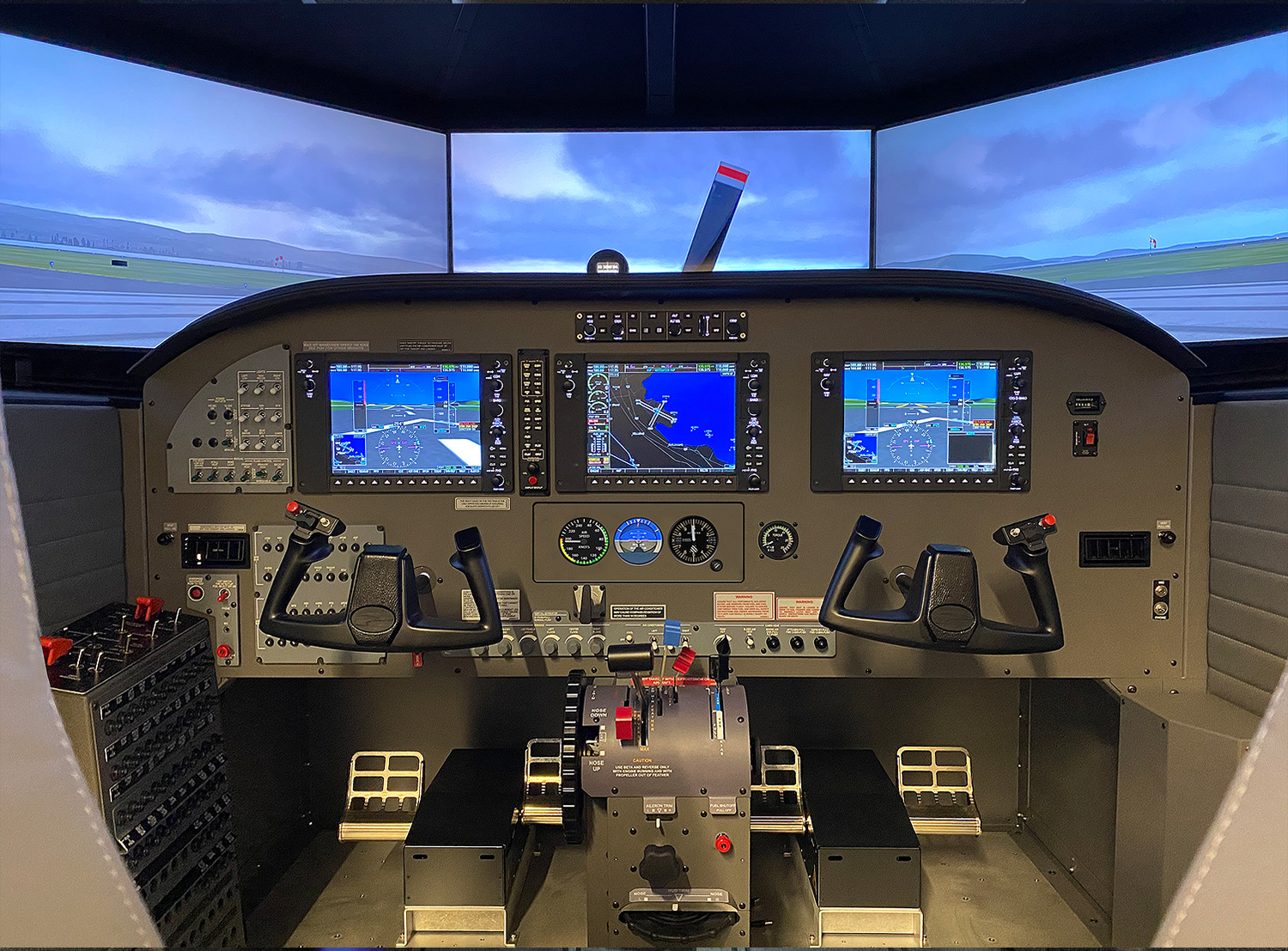

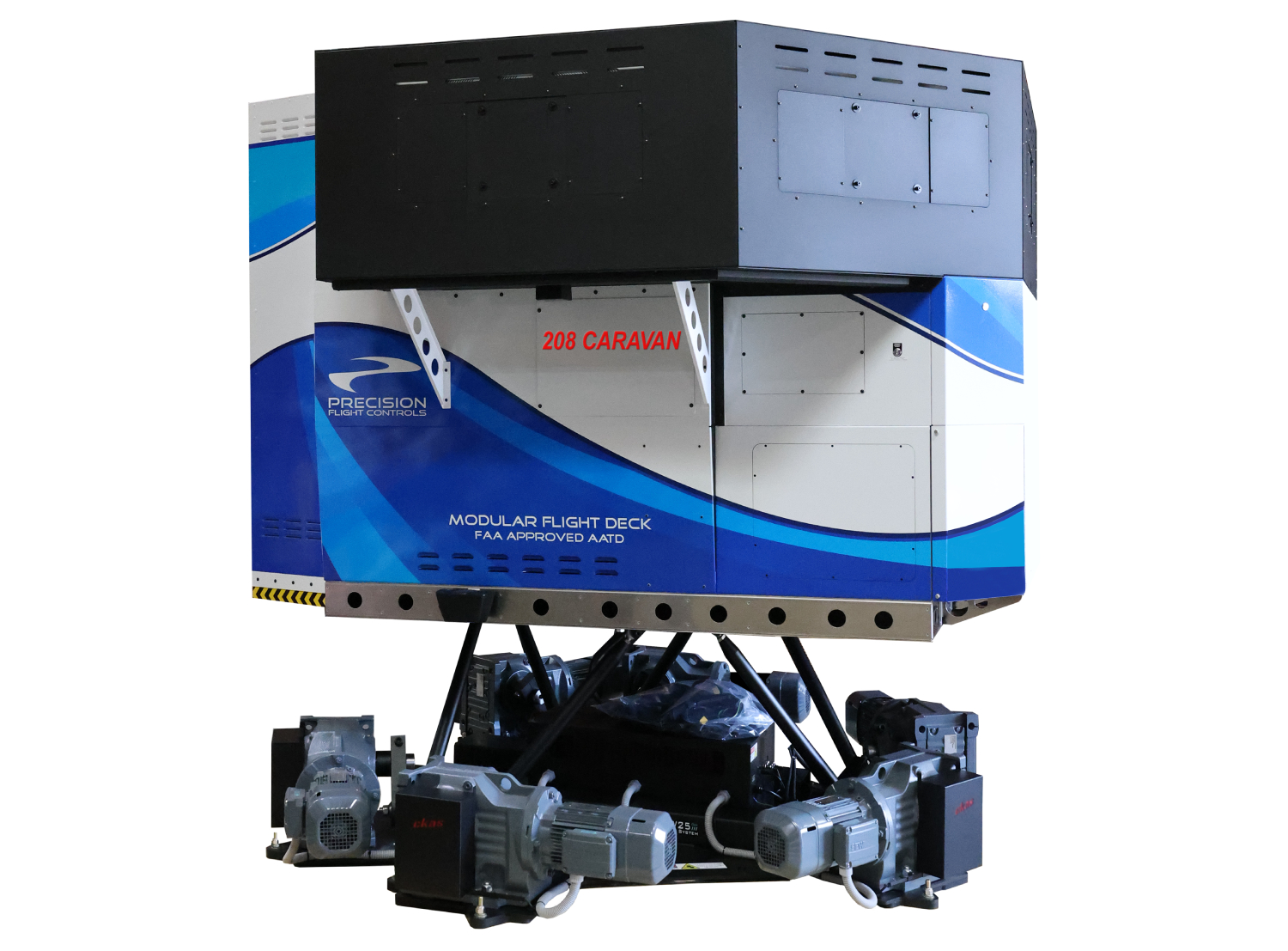

The new MFD Caravan Type Specific Simulator is now available! The MFD Caravan has all-metal construction, dual linked controls, a 225 degree integrated immersive visual system, 3-axis dynamic control loading (pitch/roll/yaw), annunciator panel, panel backlighting, functional circuit breaker panel, overhead panel, four-way intercom, The panel is dominated by a 3-screen (PFD/MFD/PFD) G1000 system with Synthetic Vision Technology (SVT), terrain (TAWS-B), traffic (TCAS), FlightCharts, and SafeTaxi. Combine the system with any of our available motion bases and experience the most capable AATD on the market today.

Standard Features

  • All-Metal Construction
  • Caravan Throttle Quadrant and Yoke
  • Dual 3-Axis Dynamic Control Loading (Pitch/Roll/Yaw)

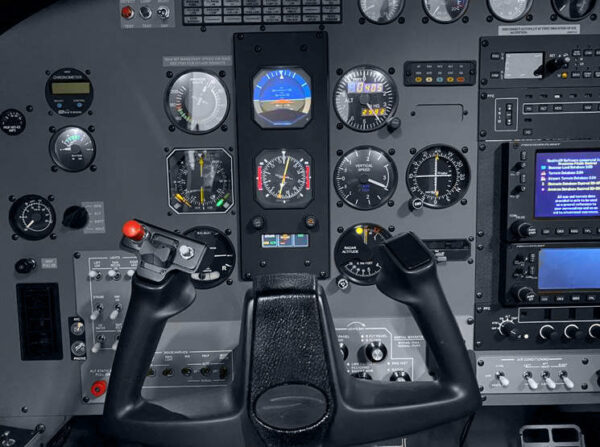

  • Standby Instruments
  • Aircraft Specific Panel Switches
  • Active Circuit Breaker Panel
  • PFC 1000 Professional Software License
  • PFC 1000 NXi Software
  • X-Plane Professional Software
  • Monitors (Visual)
  • Monitor (IOS)
  • Instructor’s Operating Station (IOS)
  • Computer Rack System
  • FlightCrew Seats – Pilot and Copilot (w/ Adjustable Base and Tracks)
  • Interior Cockpit Upholstery
  • Integrated Cockpit Air Flow System
  • Exterior Cockpit Graphics
  • In-Cockpit Video System
  • PilotEdge Compatible (4-way Intercom Included)
  • EFB Compatible
  • EFB Mounting Kit

Optional Features

  • ProMotion II 3-DOF Motion Cueing System
  • ProMotion II 3-DOF Motion Cueing System (220V)
  • MaxMotion 6DOF Full Motion System
  • Customer Logo Decal on Cockpit Exterior
  • Spare Parts Kit
  • Instructor’s Interface Console (IIC)
  • Enhanced IOS Desk
  • Spare Visual Monitor
  • Spare Computer

Specifications

System Dimensions: Width 95” Length 86” Height 76” Empty Weight 700 lbs.
